A conveyor quotation can name a motor and gearbox while leaving out the frame, chutes, controls, guarding, installation and commissioning work needed for a functioning machine. By checking the mechanical boundary, operating data, electrical scope, site services and acceptance tests, you can compare quotations and submit a usable specification for your Bengaluru plant.
Key takeaways
- Demand a parts list covering frame, belt, pulleys, rollers, guards and discharge chute.
- Match belt construction and width to material, load, incline and route length.
- Put tonnes per hour, speed, motor rating and controls in the quotation.
- Price foundations, installation, safety guarding, testing and operator training separately.
What should a complete belt conveyor supply include?
A complete belt conveyor quotation must cover the machine, not merely a motor-and-gearbox package. The belt conveyor machine inclusions should state these mechanical parts:
- Frame, belt, drive pulley, tail pulley, snub or bend pulleys where required, idlers, screw or gravity take-up, loading chute, discharge chute, guards, supports, legs, levelling feet and casters where applicable.
- Belt-jointing method, pulley lagging, scrapers, skirt rubber, take-up travel and access for replacing wear parts.
- Control panel, emergency-stop devices, structural supports, height adjustment, covers, handrails and access platforms.
Use this comparison when reviewing belt conveyors supply details in Bengaluru:
| Scope | Included in the machine price | Confirm separately |
|---|---|---|
| Mechanical | Frame, pulleys, idlers, belt, chutes and take-up | Replacement belt, joints, scrapers, skirt rubber and bearings |
| Safety and access | Guards, emergency stops, covers, supports, handrails and platforms | Extra guarding, foundations and access structures |
| Electrical | Control panel and stated motor position | Cabling, trays, anchors and site wiring |
| Site work | Height adjustment and levelling | Delivery, unloading, assembly, alignment, packing removal and commissioning |
Require a general arrangement drawing showing overall length, belt height, discharge height, motor position, service clearances and maintenance-removal paths. It can expose columns, low roofs, narrow mezzanine access and gearbox-removal problems before fabrication. Mark every item as included, optional or excluded; do not leave anchors, foundations, cabling or replacement wear parts implied.
How should you specify the belt for the material and route?
Start with the feed, not a nominal belt width. Describe whether it is film, bottles, rigid flakes, regrind, rejected parts, baled plastic, e-waste or a mixed stream, then provide bulk density, moisture, contamination, feed rate, maximum feed size and expected temperature.
1. Select belt material and construction: PVC, PU or rubber; EP fabric or steel-cord carcass; cover grade; total thickness; oil resistance; antistatic performance; flame-retardant requirement; and hot-vulcanised, mechanical or cold splice. State whether the surface is smooth, ribbed, patterned or cleated.
2. Define containment and carrying geometry. Give belt width, usable carrying width, belt length, and whether it is flat, troughed or ribbed. For film and light plastic on an incline, specify cleat height and pitch, sidewall height and troughing arrangement; a smooth belt can cause rollback and spillage.
Bottles, rigid flakes and rejected parts need different cleat, sidewall and impact choices.
3. Draw the route with inclination angle, transition lengths, transfer height, conveyor length, discharge height and required belt-tensioning travel. State whether tensioning uses a screw or gravity take-up, and whether a drive backstop is included.
E-waste and mixed feed need a wear-resistant cover, an impact bed or closely spaced impact idlers, protected pulleys and a chute that keeps sharp fragments away from the belt edge. Include these details in a plastic recycling belt conveyor order, rather than leaving “rubber belt” or “PVC belt” as the specification.
Which capacity, drive and electrical figures belong in the quote?
Capacity is proven by material and load data, not belt width or motor kilowatts alone. For belt conveyors what is included in Bengaluru, give the supplier:
- Throughput in kg/h or t/h, bulk-density range, maximum lump or piece size, loading condition, length, lift height, incline, operating hours and required speed.
- Material form, such as loose flakes, film, bottles, rigid regrind or baled feed.
Require the quotation to state rated load, conveying speed, maximum feed size and usable carrying width.
| Figure | Why it matters | Require in the quote |
|---|---|---|
| Absorbed power | Shows the calculated running demand | Drive calculation |
| Starting condition | Tests loaded-start capability | Starting current or torque basis |
| Service factor | Allows for shock and duty | Stated factor |
| Gearbox ratio and motor rating | Confirms output speed and torque | Both values |
| Pulley diameter and belt tension | Exposes drive and traction limits | Calculated values |
A larger motor does not correct poor loading, excessive friction or inadequate tension.
Ask whether speed adjustment uses a variable-frequency drive, then require motor voltage, frequency and phase, starter or VFD, overload and short-circuit protection, local start/stop controls, emergency-stop pull cords or pushbuttons, upstream and downstream interlocks, cable tray or flexible cable, and panel ingress-protection rating.
Confirm the Bengaluru site supply rather than assuming 415 V, three-phase, 50 Hz. State whether speed adjustment, restart logic and the control-panel enclosure are included or separately charged.
Which site, safety and commissioning services must be priced separately?
A quotation is incomplete if it covers fabrication but leaves site work unclear. Ask for belt conveyors supply details in Bengaluru that separate delivery within Bengaluru, unloading, site assembly, alignment, belt installation and jointing, anchoring, electrical wiring from the panel to the motor, trial running, commissioning under load, operator training and removal of packing material.
| Service | Confirm in quotation | Handover evidence |
|---|---|---|
| Delivery and installation | Delivery, unloading, assembly, alignment, anchoring and belt jointing | Signed installation checklist |
| Machine access and safety | Height adjustment, levelling, platforms, handrails, covers and nip-point guards | Guarding inspection record |
| Electrical and commissioning | Wiring, trial run, load commissioning and training | Drawings, training record and test sheet |
Require guards around drive and tail pulleys, rotating parts and accessible maintenance zones. A slow conveyor still creates entanglement hazards at belt nips during cleaning and maintenance.
Define acceptance tests before fabrication:
- No-load and loaded checks for belt tracking, stated capacity, speed, motor current, noise or vibration observations and spillage.
- Emergency-stop response, upstream and downstream interlock sequence, and safe restart after a trip.
- A signed test record with measured results, not the phrase “running successfully”.
Request motor and gearbox datasheets, electrical drawings, foundation or anchor details, lubrication instructions and VFD parameters. Price recommended spares before ordering: idlers, bearings, scrapers, skirt rubber, fuses, contactors, belt-jointing materials and other wear parts.
How do you compare Bengaluru suppliers before placing the order?
Send every bidder the same process sheet, or the prices will compare different machines. Identify the feed as film, rigid flakes, bottles, rejected parts, regrind, baled material or e-waste, then state contamination, moisture, sharp fragments, bulk density, feed rate, maximum size, incline and every transfer point.
This forces each supplier to address belt texture, side containment, impact protection and spillage control.
Compare the offers against one checklist:
- General arrangement drawing with length, belt and discharge heights, motor position, clearances and maintenance-removal paths
- Component schedule, including frame, pulleys, idlers, tensioning arrangement, chutes, guards, supports and belt
- Motor, gearbox, belt-tension and starting calculations
- Electrical scope, controls, emergency stops, interlocks and cabling
- Installation exclusions, delivery commitment and commissioning responsibility
- Acceptance test covering speed, capacity, tracking, current, spillage, emergency-stop response and restart
| Site question | Evidence to request | Failure prevented |
|---|---|---|
| Will it fit? | Drawing showing columns, roof clearance, mezzanine access and maintenance path | Blocked installation or gearbox removal |
| Will it handle the feed? | Rated capacity, maximum size and impact arrangement | Belt cuts, overload and spillage |
| Is the price complete? | Separate lines for components, controls, site work, documentation and spares | Unexpected additions |
An industrial belt conveyor supplier in Bengaluru must explain these site interfaces, not only quote motor power. Ashwini Engineering Works can be compared on the same basis when its quotation separates those boundaries.
For belt conveyors what is included in Bengaluru, keep plant registration, records and waste-handling duties separate: the Plastic Waste Management Rules and E-Waste Management Rules regulate facility operations, not conveyor purchases.
Related product

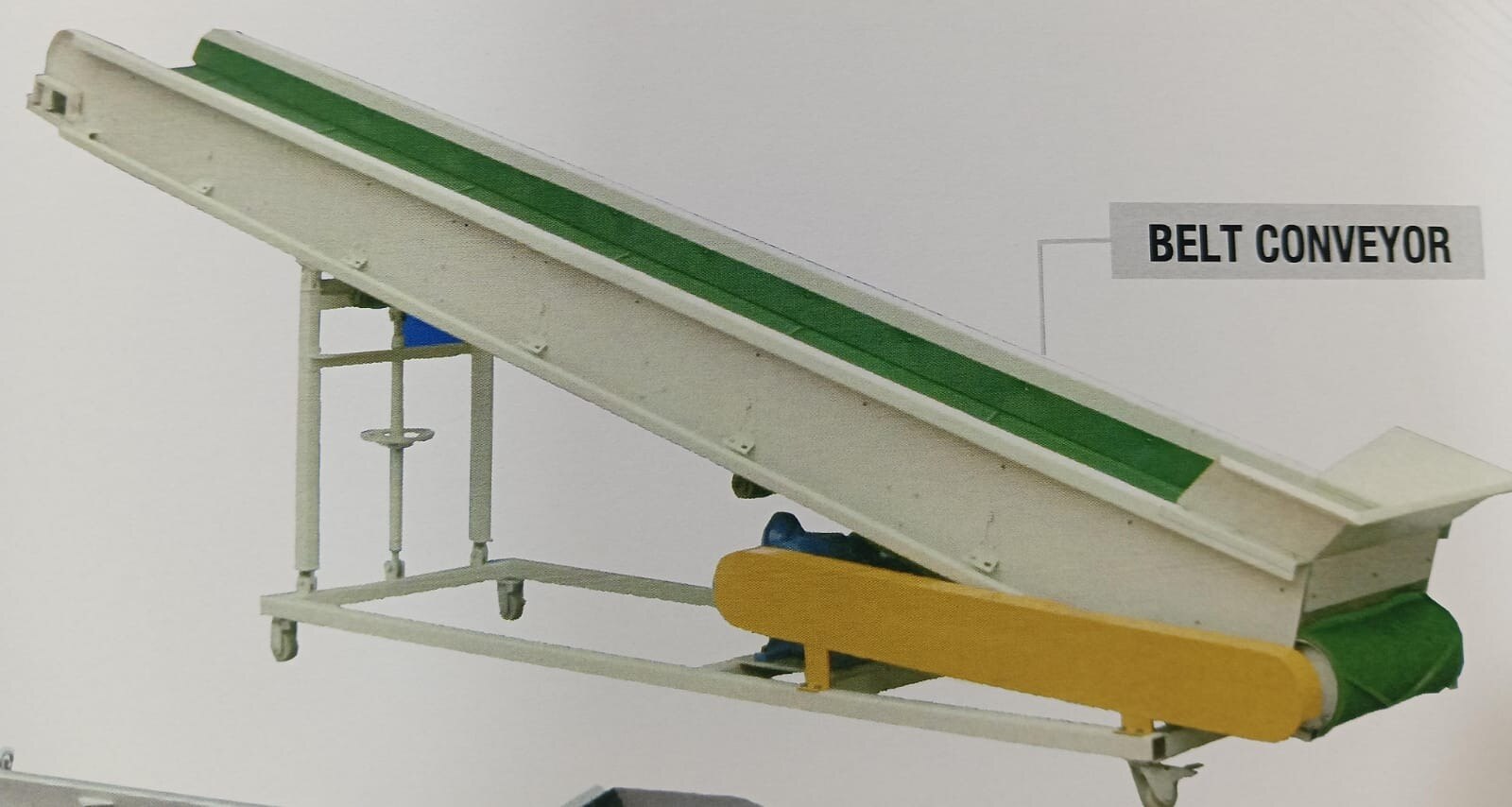

 | Plastic Recycling Machinery The Belt Conveyor from Ashwini Engineering Works is designed for smooth, efficient, and continuous material handling across various industrial... View product → |
Frequently asked questions
What should a complete belt conveyor supply include?
A complete supply should identify the frame, belt, drive pulley, tail pulley, idlers, take-up, scraper, guards, loading and discharge arrangements, controls, documentation and spares.
How should you specify the belt for the material and route?
State the material, particle size, moisture, temperature, abrasiveness, bulk density, belt width, route length, incline angle, loading method and discharge point. Then confirm belt cover, carcass, splice method and cleat requirements.
Which capacity, drive and electrical figures belong in the quote?
Require rated capacity in tonnes per hour, belt speed in metres per minute, motor power in kilowatts, gearbox ratio, starting method, supply voltage, frequency, control-panel scope and emergency-stop arrangement.
Which site, safety and commissioning services must be priced separately?
Separate civil foundations, structural supports, transport, unloading, erection, cabling, earthing, guarding, pull-cord switches, testing under load, commissioning, training and maintenance support.
How do you compare Bengaluru suppliers before placing the order?
Compare identical duty figures, a line-by-line inclusion list, drawings, delivery scope, warranty terms, spares, installation responsibility, service response and references for plastic recycling applications.
